Add bar chart annotations to a sunburst or icicle plot

Source: R/plot-bars.R
bars.Rd

Overlays bar charts adjacent to leaf nodes, where each bar represents a quantitative variable from node attributes. Values are max-normalised per variable to the 0–1 range.

Usage

bars(
  p,
  sb,
  variables,
  y_offset = 0,
  bar_height = 1,
  box_colour = "black",
  bar_colour = "black",
  show_labels = FALSE,
  show_values = FALSE,
  label_size = 3,
  value_size = 2.5,
  ...
)

Arguments

p

A ggplot object from sunburst(), icicle(), or ggtree().

sb

The sunburst_data object used to create p.

variables

Character vector of numeric column names in sb$rects to display as bars.

y_offset

Vertical offset from the outermost ring. Default 0.

bar_height

Height of each bar band. Default 1.

box_colour

Outline colour for the outer box. Default "black".

bar_colour

Fill colour for the inner value bar. Default "black".

show_labels

Whether to display variable names. Default FALSE.

show_values

Whether to display numeric values inside bars. Default FALSE.

label_size

Text size for variable labels. Default 3.

value_size

Text size for value labels. Default 2.5.

...

Passed to the outer geom_rect().

Value

The input ggplot with additional bar layers.

See also

tile() for heatmap-style annotations, highlight_nodes() for node emphasis.

Examples

df <- data.frame(
  parent = c(NA, "root", "root"),
  child  = c("root", "A", "B"),
  score  = c(NA, 0.5, 0.9)
)
sb <- sunburst_data(df)

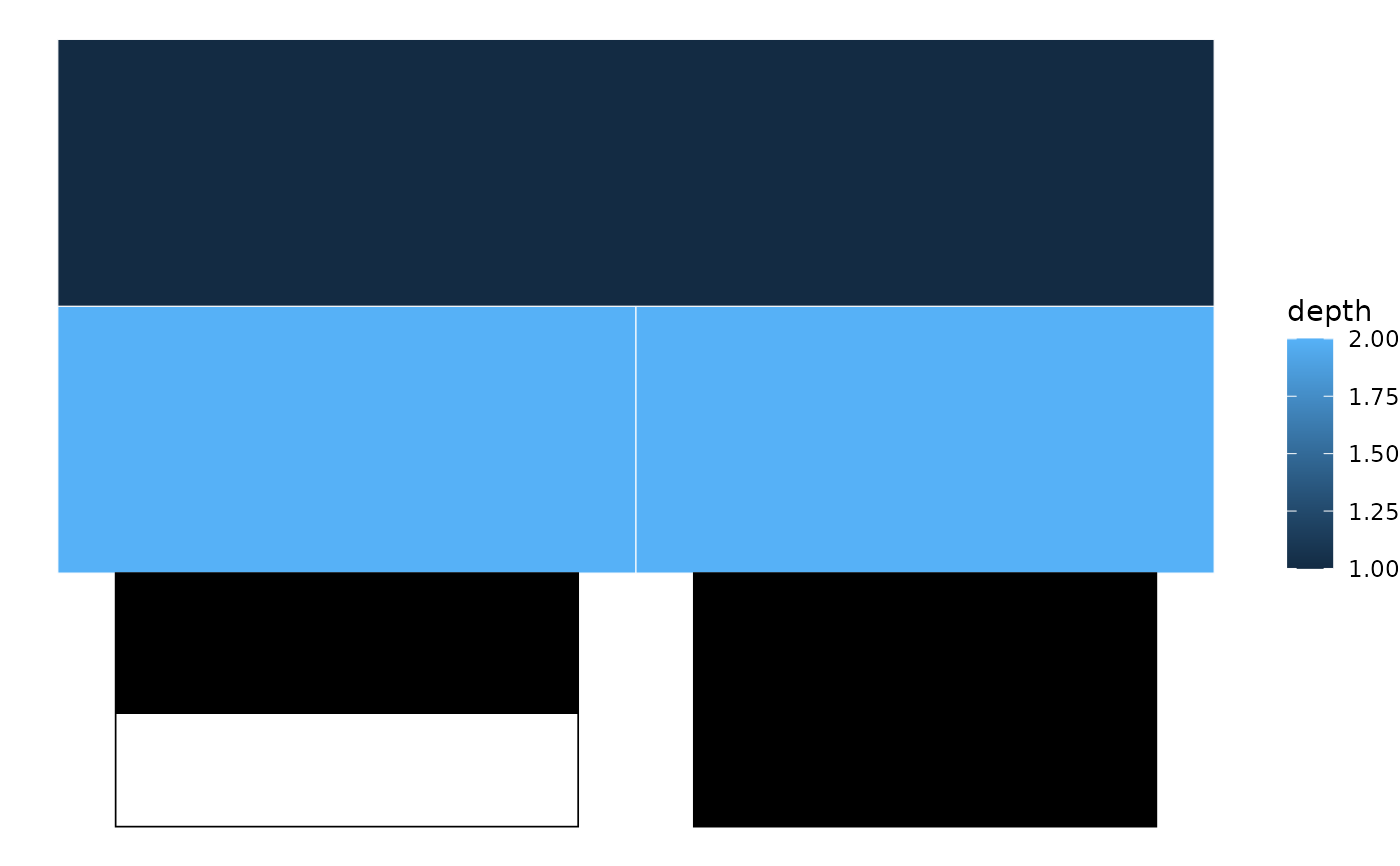

p <- icicle(sb, fill = "depth")
bars(p, sb, variables = "score")
